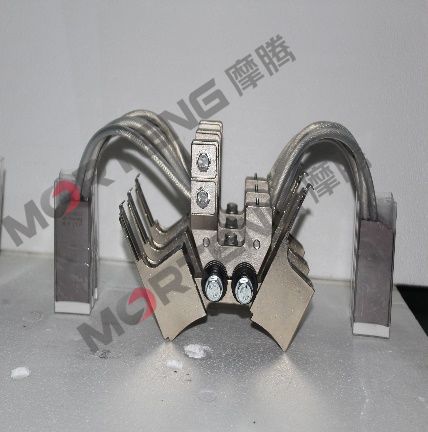

High Quality Carbon Brush Holder Assembly for Sale
Product Description
|
General dimensions of slip ring system |
|||||||||
|
|
A |
B |
C |
D |
E |
R |
X1 |
X2 |
F |
|
MTS180130C237 |
56..5 |
60 |
60 |
212 |
Ø130 |
Ø270 |
60° |
60° |
2-M8通 |
|
Overview of other characteristics of the slip ring system |
|||||
|
Main brush specifications |
Number of main brushes |
Specification of grounding brush |
Number of grounding brushes |
Circular phase sequence arrangement |
Axial phase sequence arrangement |
|
18*42*85 |
12 |
10*16*96 |
6 |
anti-clockwise(K、L、M ) |
From left to right(K、L、M) |
|
Mechanical technical indicators |
|
Electrical Specifications |
||
|
Parameter |
Value |
Parameter |
Value |
|
|
Range of rotation |
1000-2050rpm |
Power |
/ |
|
|
Operating temperature |
-40℃~+125℃ |
Rated voltage |
1834V |
|
|
Dynamic balance class |
G1 |
Rated current |
Can be matched by user |
|
|
Working environment |
Sea base, plain, plateau |
Withstand voltage test |
Up to 10KV/1min test |
|
|
Anticorrosion grade |
C3、C4 |
Signal line connection |
Normally closed, series connection |
|
Assembly Detail Drawings
"Full participation in the continuous improvement of carbon brush, brush holder, collector ring product quality control"
Our company strictly implements the quality standards formulated by the International Organization for Standardization, carries out product quality pre-planning, focuses on the quality management concept of prevention, and cooperates with the enterprise's quality management awareness of excellence to ensure the product quality of carbon brushes.
In accordance with the international quality standard system for all staff quality management, the operation standards are formulated for the production and inspection of carbon brush products to prevent problems. In response to quality problems, a special quality analysis team was quickly established to discuss key issues, identify the reasons, clarify standards, and continue to improve.
Professional, efficient, enthusiastic and dedicated carbon brush customer service team”
In order to better serve the majority of carbon brush customers, we have recruited the elites of the company to form a technical professional,
The enthusiastic and dedicated customer service team strives to provide customers with professional carbon brush selection suggestions and technical solutions efficiently and quickly.
Sincere sharing and service first are our service value guidelines. We strive to provide carbon brush customers with professional, efficient and timely carbon brush product selection suggestions and quotation plans to ensure that customers choose appropriate and high-quality fine carbon brushes, brush holders and other mechanial and electrical products.
